| Product Parameter |
Parameter Description |

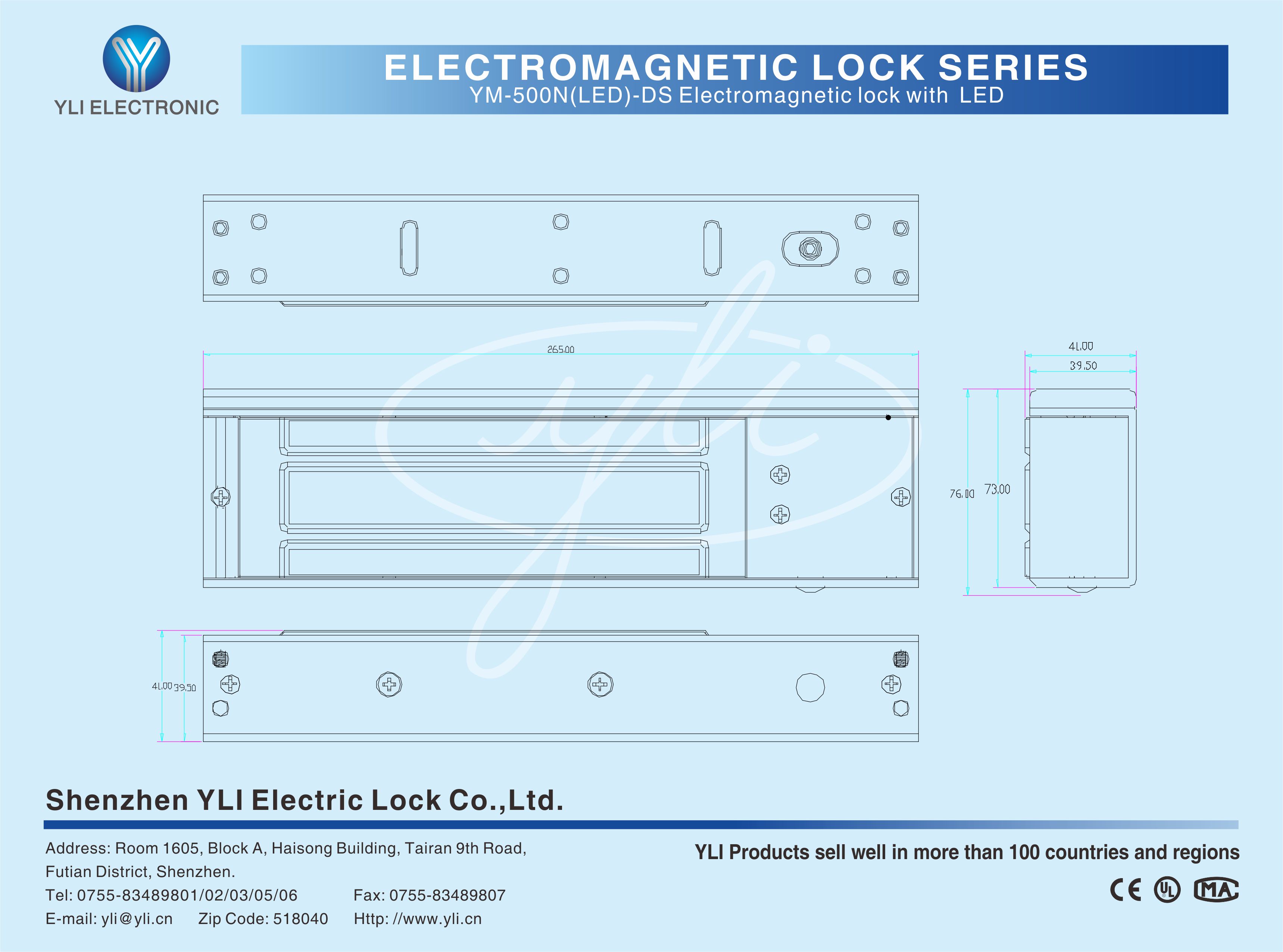

| Size |
265Lx73Wx41H(mm) |
| Armature Plate Dimension |
185Lx60Wx13.2H(mm) |
| Input Voltage |
DC12V(Default); DC24V(Adjustable) |
| Current |
12V/500mA(±10%) ; 24V/250mA(±10%) |
| LED |
Red shows locked ;Green shows unlocked |
| Lock Signal Output |
NO while locking and NC for unlocking(Voltage<30VDC;Current<0.5A) |
| Door Signal Output |
NO/NC/COM Door Status Signal Output Contact |
| Holding Force |
500kg(1200Lbs)±10% direct pull |
| Operating temperature |
-30℃~+66℃ (-22~151F) (ANSI laboratory report) |
| Operating humidity |
0~95% relative humidity |
| Surface temperature |
Within 20℃ above ambient temperature |
| Salt spray test |
240-hour exposure (National laboratory report) |
| Holding force after salt spray test |
Holding force attenuation within 5% after 240 hours of salt spray test |
| Durability |
Passed 1 million tests |
| Holding force after durability test |
Holding force attenuation within 5% after 1 million durability tests |
| Dynamic impact test |
45J hammer continuous impact 5 times (ANSI laboratory report) |
| Residual magnetism test |
Demagnetization and unlocking within 0.5 seconds (ANSI laboratory report) |
| Overvoltage test |
125% overload normal operation (ANSI laboratory report) |
| Undervoltage test |
85% input voltage pull force test (ANSI laboratory) |
| Housing treatment |
Anodized hard plating (500-hour salt spray test report) |
| Flame-retardant lock body |
Potting with flame-retardant resin (grade :V-0) |
| Suitable |
Wooden door , Glass door ,Metal door , Fireproof door |
| Weight |
4.5kg |
| Certification |
CE-EMC CE-LVD RoHS |
