| Product Parameter |
Parameter Description |

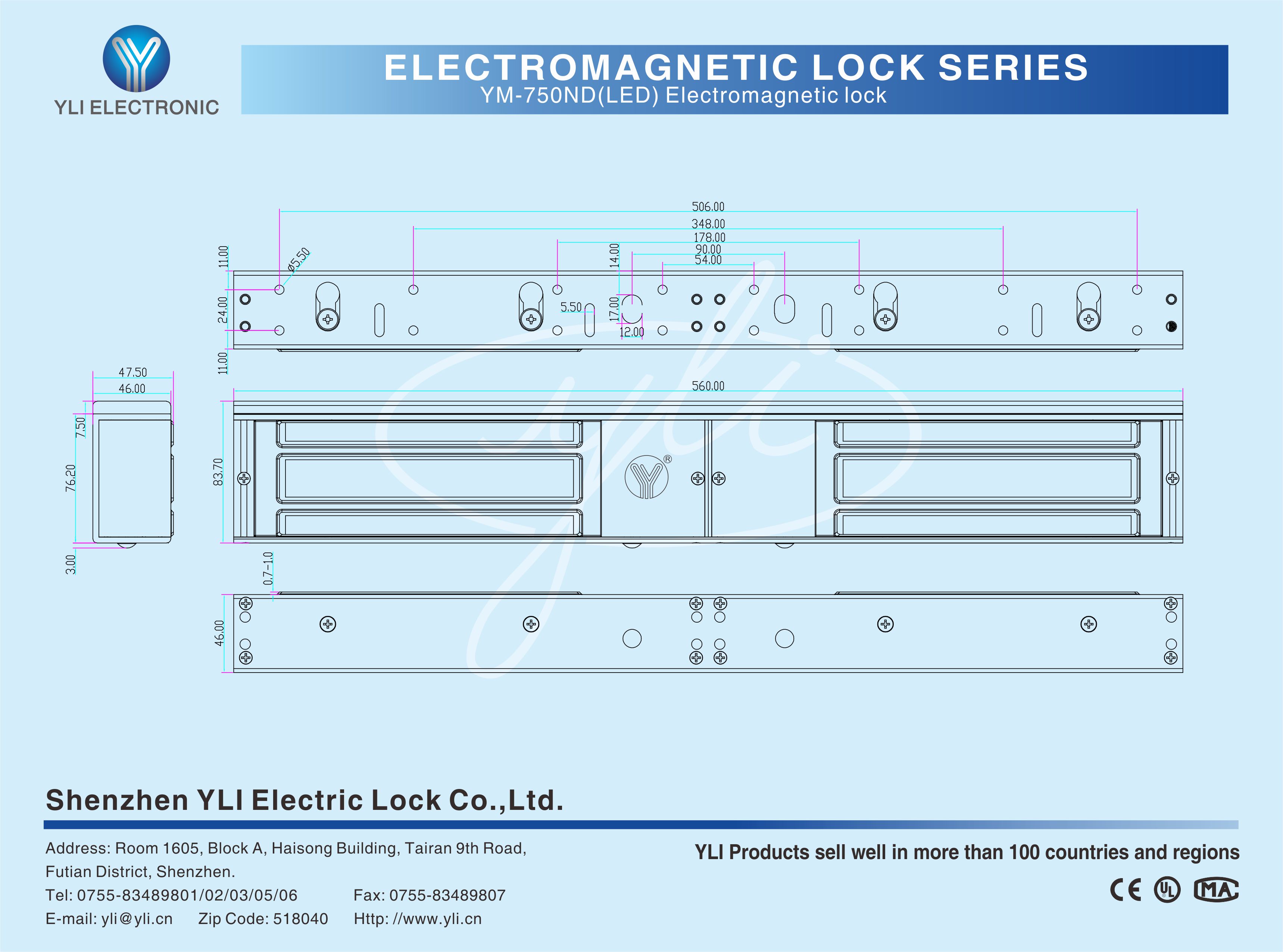

| Size |
560Lx83.7Wx47.5H(mm) |
| Armature plate |
190Lx71Wx17.5H(mm) |
| Input Voltage |
DC12V(Default); DC24V(Adjustable) |
| Current |
12V/500mA(±10%)x2 ; 24V/250mA(±10%)x2 |
| LED |
Red shows locked ;Green shows unlocked |
| Signal Output |
NO while locking and NC for unlocking |
| Holding Force |
750kg(1500Lbs)±10%x2 direct pull |
| Operating temperature |
-30℃~+66℃ (-22~151F) (ANSI laboratory report) |
| Operating humidity |
0~95% relative humidity |
| Surface temperature |
Within 20℃ above ambient temperature |
| Salt spray test |
240-hour exposure (National laboratory report) |
| Durability test |
1,000,000 cycles (ANSI laboratory report) |
| Dynamic impact test |
45J hammer continuous impact 5 times (ANSI laboratory report) |
| Residual magnetism test |
Demagnetization and unlocking within 0.5 seconds (ANSI laboratory report) |
| Overvoltage test |
125% overload normal operation (ANSI laboratory report) |
| Undervoltage test |
85% input voltage pull force test (ANSI laboratory) |
| Housing treatment |
Anodized hard plating (500-hour salt spray test report) |
| Lock core certification |
Encapsulation with American UL-certified fireproof resin |
| Suitable |
Wooden door , Glass door ,Metal door , Fireproof door |
| LED |
Red indicates the door is unlocked, Green indicates the door is locked |
| Weight |
11.8kg |
| Certification |
UL294 & 1034 ANSI BHMA |
