American Standard Electric Strike
There are 16 Similar products,Comparison

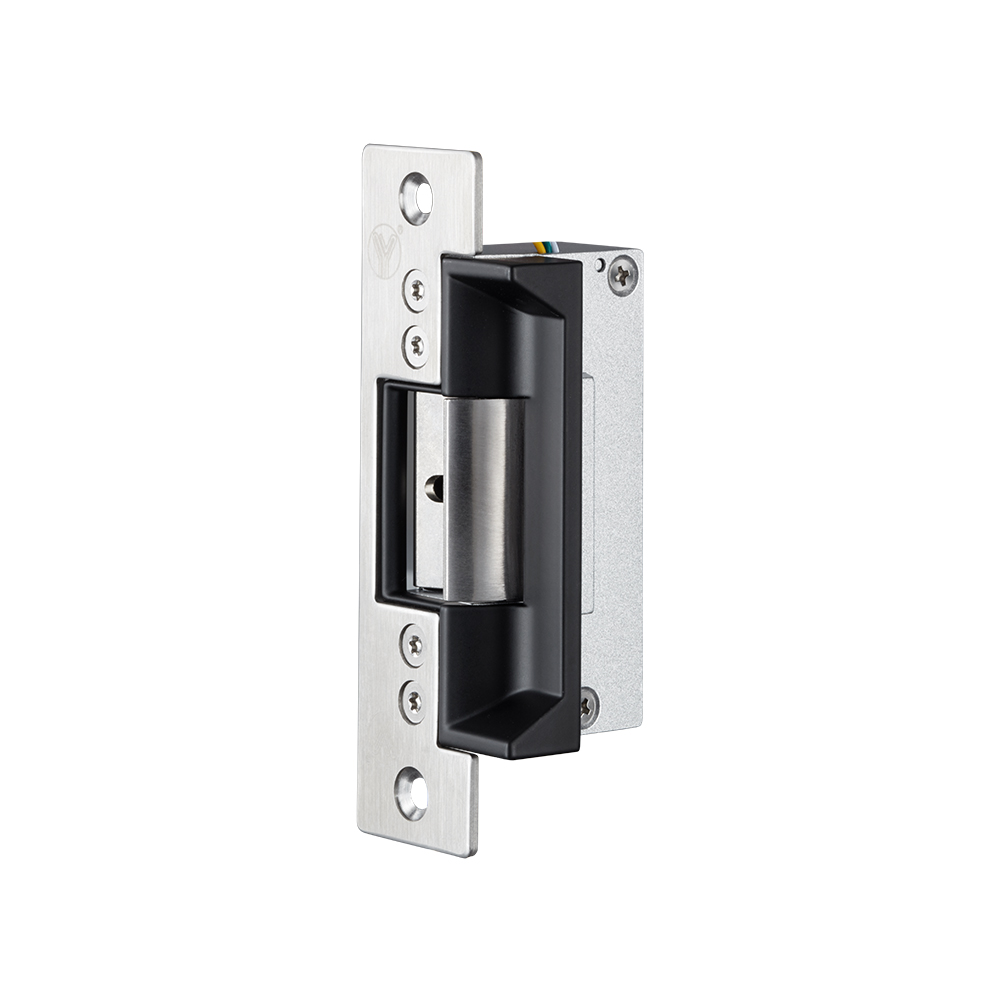

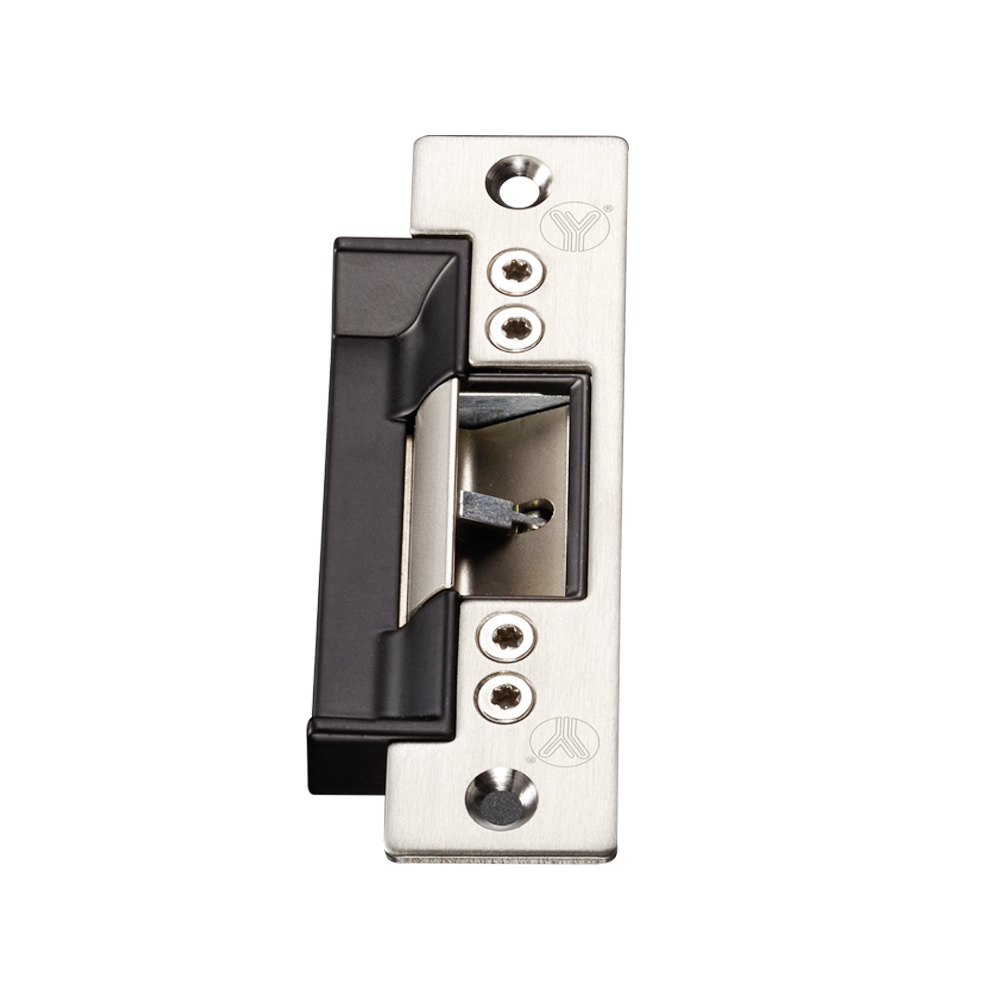

American standard Heavy Duty Electric Strike W/Signal
Model:YS-136NO/NC-S
ANSI Heavy Duty electric strike with signal output is designed for use with ANSI cylindrical locksets. It can be fitted to wooden door,metal door,PVC door ,etc. It features both “electrically controlled” operation for daily use and “manual operation “ for emergencies. .It is tested for 300,000 cycles for long-term durability.The strike keeper is made of 304 stainless steel and static strength is approximately 900KG.
Keywords:
Share to:
Product Parameter Parameter Description
Lock Size  123Lx43Wx42H(mm)
Keeper  Stainless Steel
Static strength test approx. 900kg (third-party report)
Voltage  DC12V (Need Order DC24V)
Current  12V/400mA(±10%);24V/160mA(±10%)
Signal Output  Lock Status Output  NO/NC/COM
Feature  Fail Secure(YS-136NO-S); Fail Safe(YS-136NC-S)
Suitable For  Wooden Door,Metal Door,PVC Door
Surface Temperature  Within +20℃
Suitable Temperature  -10~+55℃(14-131F)
Operating Humidity  0~95%(non-condensing)
Face plate Housing  Painted Steel
Lock tongue  Surface by coating nickel
Protection performance  With Diode Surge Absorption Device
Optional Accessories  YS-305  YS-306
Weight  0.34kg
Certification CE-EMC CE-LVD FCC RoHS REACH WEEE



Static strength test approx. 900kg (third-party report)
Designed for Metal Frame drill a hole,then install it directly
Testing to 100000 cycles
High-Temperature Painted,Durable and Beautiful  Artical
CE Certificate by European Union, MACertificate by China Public Security office


Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 60
Packing Size(L*W*H)(cm) 54.5*20*30.5
Gross Weight(KG) 23.4
