American Standard Electric Strike
There are 16 Similar products,Comparison

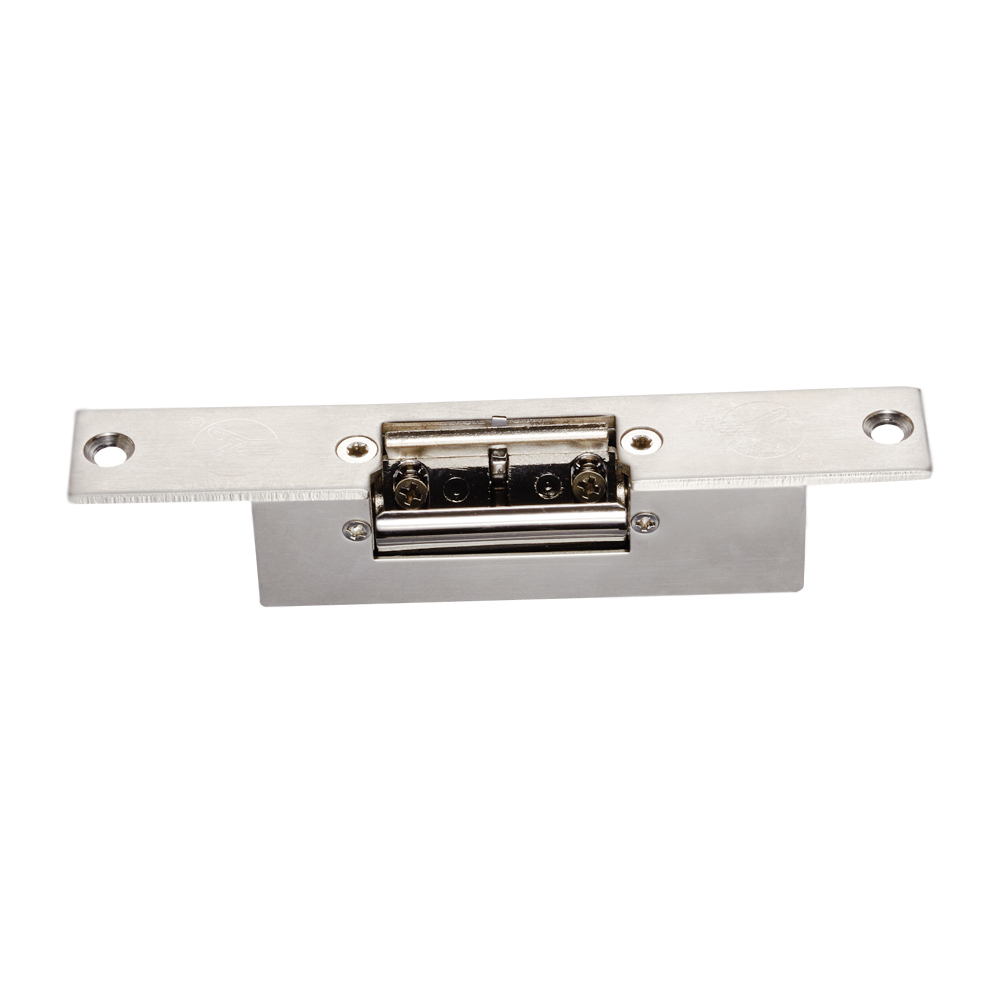

Fail Safe Electric Strike for Glass Door with Signal
Model:YS-133NC-S
YS-133NC-S is designed for use on full glass door with thickness of 10-12mm. Equipped with one set of NO/NC/COM to provide real-time feedback of door status to the access control system
Keywords:
Share to:
Product Parameter Parameter Description

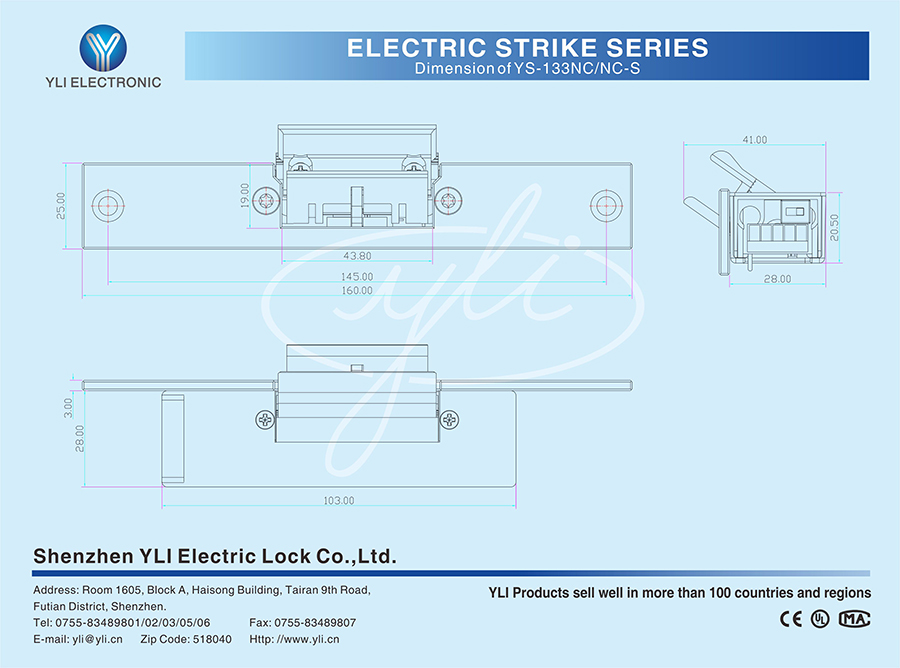

Lock Size 160Lx25Wx31H(mm)
Keeper Stainless Steel
Strike Structure 350kg
Voltage DC12V (DC 24V need order)
Current DC12V/200mA(±10%),DC24V/100mA(±10%)
Feature Fail SafeYS-133NC-S
Signal Output  Lock Status OutputNO/NC/COM
Surface Temperature Within +20℃
Suitable Temperature -10~+55℃(14-131F)
Operating Humidity 0~95%(non-condensing)
Face plate Housing Painted Steel
Protection performance  With Diode Surge Absorption Device
Glass Thickness 12-15mm
Opening Mode 90 Degree Swinging Door
Weight 0.4kg
Patent No. ZL2014205319019
Certification CE-EMC CE-LVD FCC-VOC REACH WEEE
Holding 500kg.
Aluminum, Stainless Steel Bolt.
Testing to 100000 cycles.
High-Temperature Painted,Durable and Beautiful  Artical.
CE Certificate by European Union, MACertificate by China Public Security office.



Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 60
Packing Size(L*W*H)(cm) 54.5*20*30.5
Gross Weight(KG) 23.4
