American Standard Electric Strike
There are 16 Similar products,Comparison

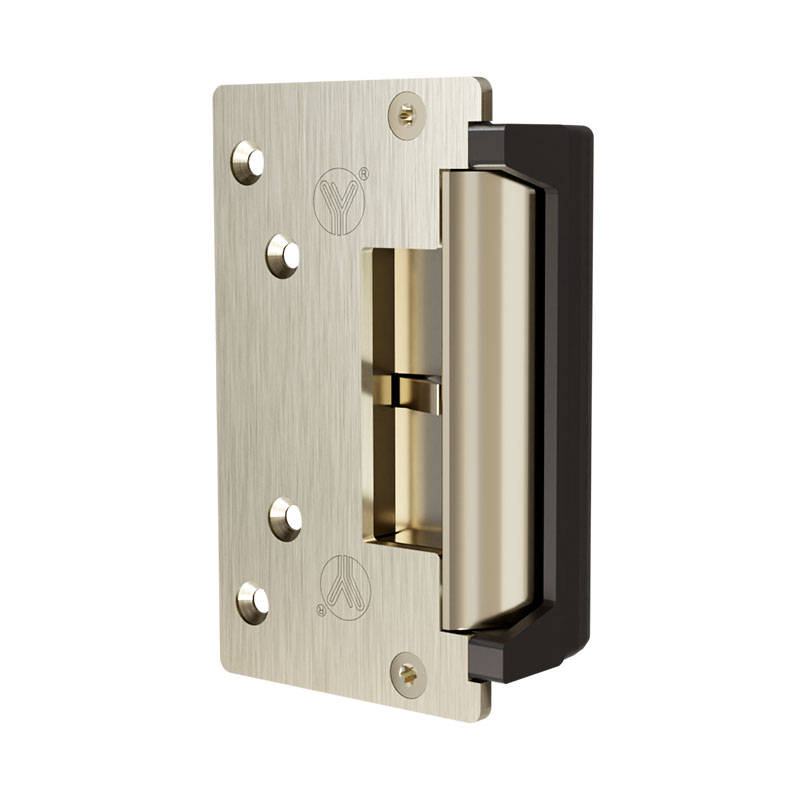

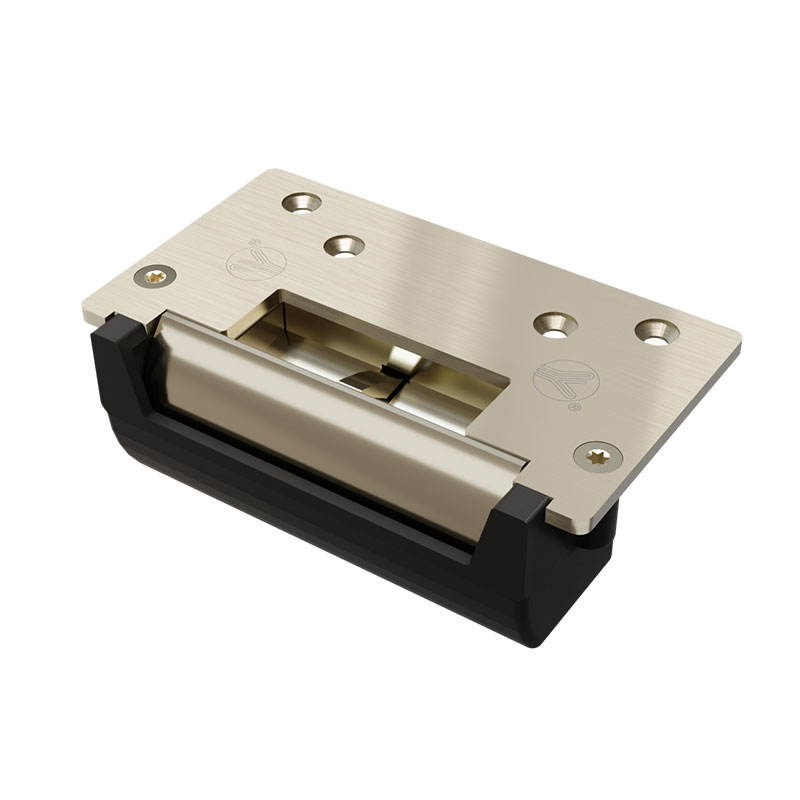

American Standard Surface Mount Electric Strike W/Signal
Model:YS-138SUR-S
ANSI Heavy Duty Surface mount electric strike is designed for use with ANSI cylindrical locksets. It can be fitted to wooden door,metal door,PVC door ,etc. It features both “electrically controlled” operation for daily use and “manual operation “ for emergencies. Equipped with one set of NO/NC/COM to provide real-time feedback of door status to the access control system.It features a reinforced durable solenoid designed for continuous operation (tested and certified for 1 million cycles of continuous electrification).The strike keeper is made of stainless steel and the internal moving parts are reinforced with 304 stainless steel (static strength is approximately 900kg), making them sturdier and more durable. The operating mode fail secure or fail safe can be adjusted as needed.
Keywords:
Share to:
Product Parameter Parameter Description

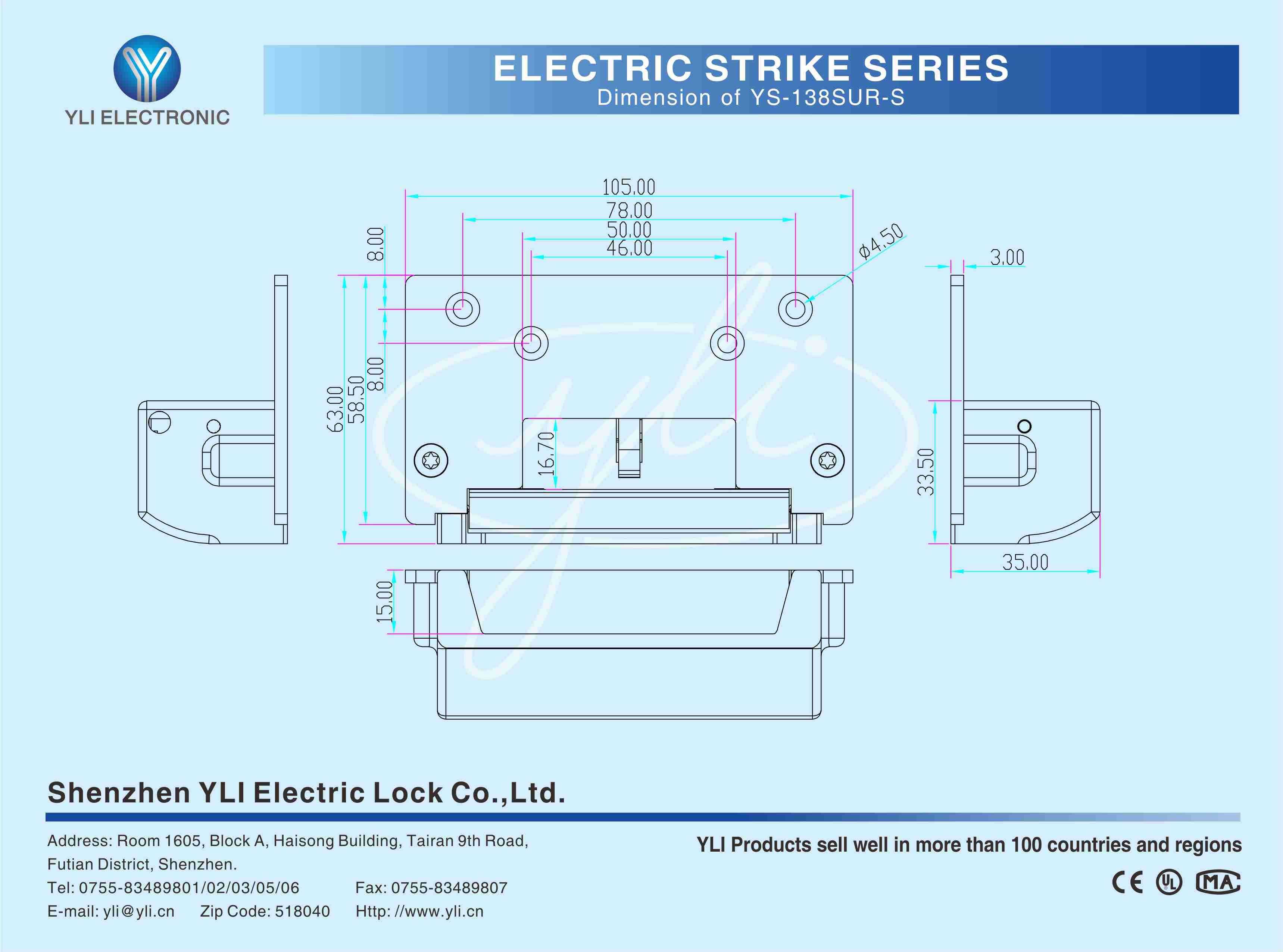

Dimensions L105xW63xH35(mm)
Keeper depth  12mm
Static strength test approx. 800kg (third-party report)
Keeper width   50mm
Voltage   DC12V(DC 24V customizable)
Current  12V/280mA(±10%); 24V/140mA(±10%)
Door signal output  Door status signal output;NO/NC/COM contacts
Installation method  Surface mounted (use with mechanical locks)
Application  Wooden doors, metal doors, fire doors
Surface temperature Below ambient temperature+20℃
Applicable temperature  -20°C~+55°C(-4-131°F)
Applicable humidity   0~95%relative humidity
Material of housing Zinc alloy (high temperature painted)
Protection performance  With Diode Surge Absorption Device
Material of faceplate  SUS304 stainless steel (surface brushed)
Weight  0.4kg

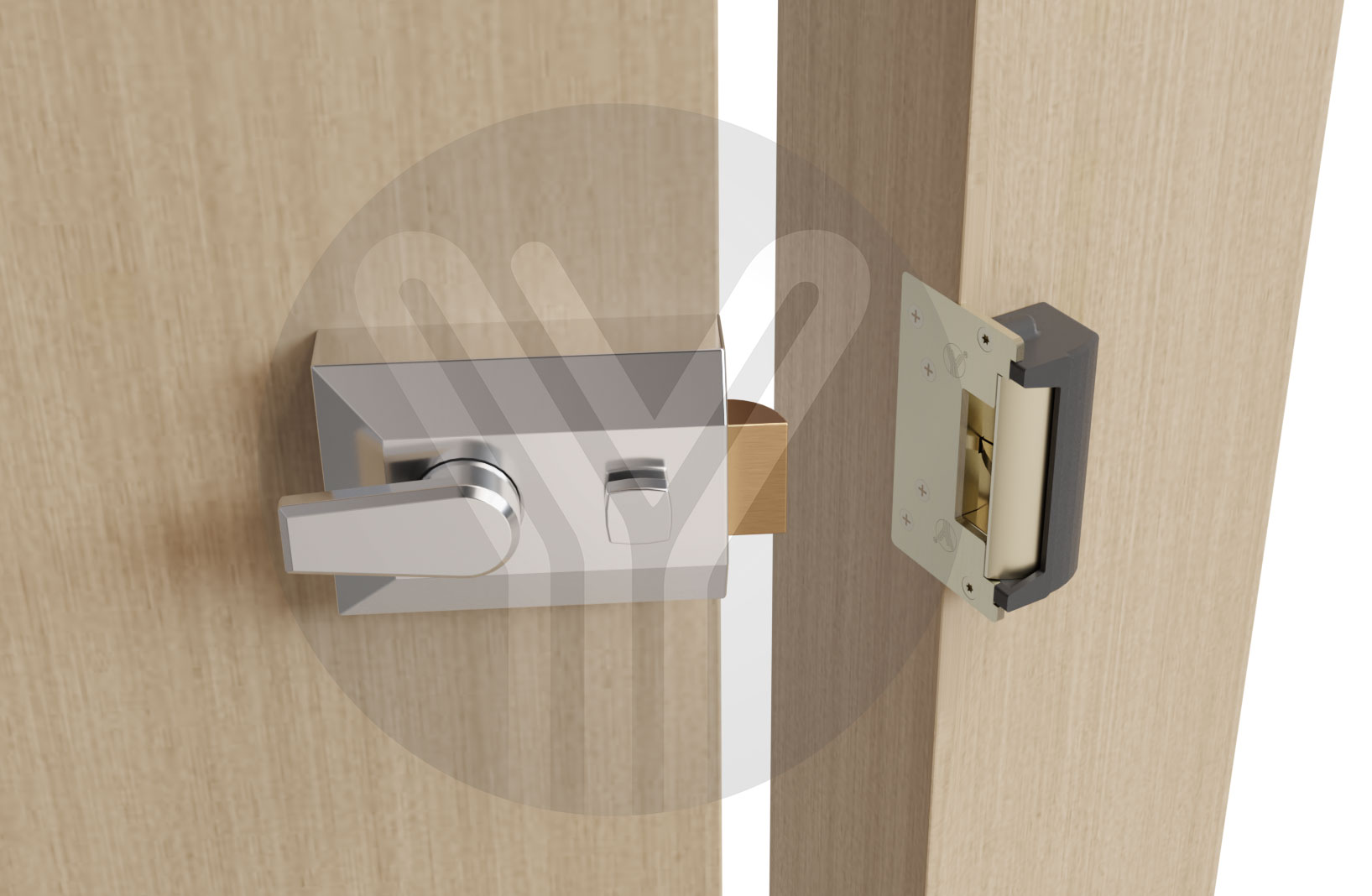

Surface mounted electric strike, no need to slot on door
frame, easy to install; with door signal output
Static strength rating of 1000 pounds-force (4448 N)
Dynamic strength rating of 50 footpounds-force (68 J)
Solenoid valve has been tested 250,000 times (UL laboratory)
More than 500,000 times aging test
NC/NO adjustable
Factory default: NC mode(Fail safe)
SUS304 stainless steel faceplate,
precision cast SUS304 high-strength strike keeper



Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
