European Standard Electric Strike
There are 13 Similar products,Comparison

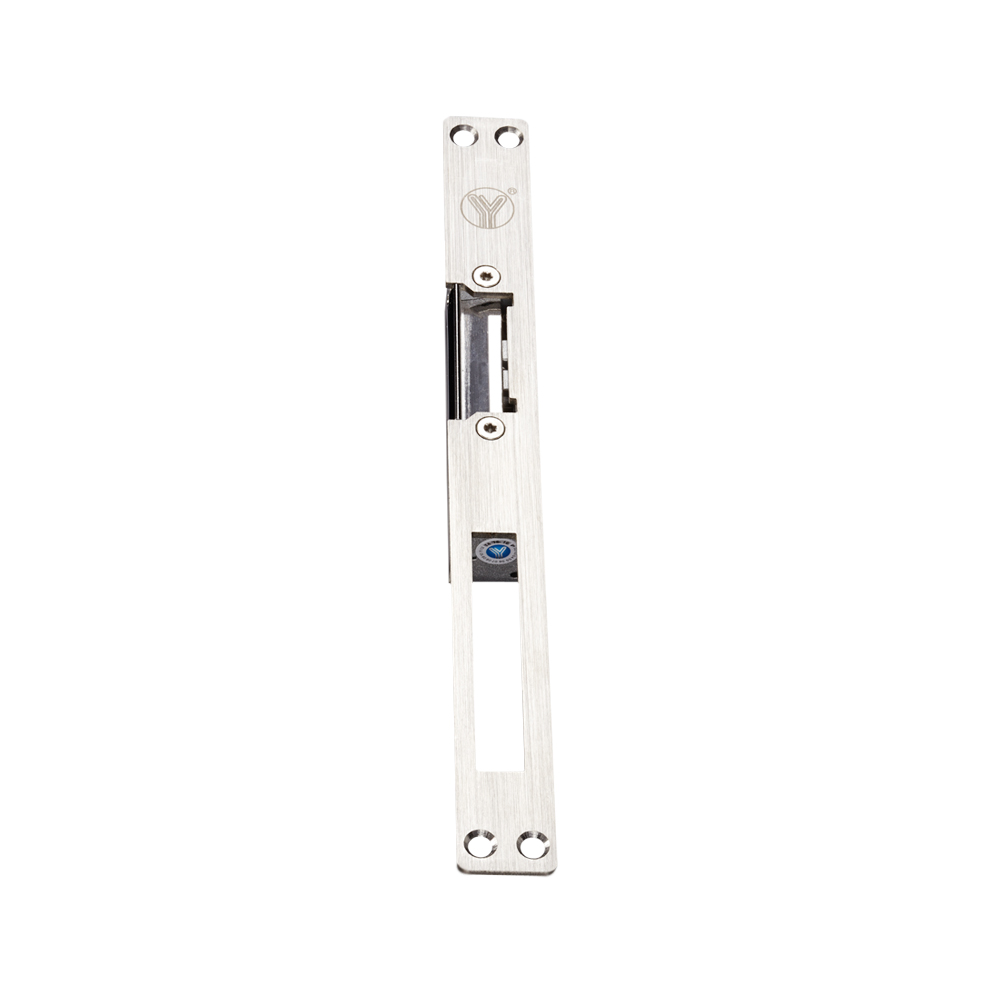

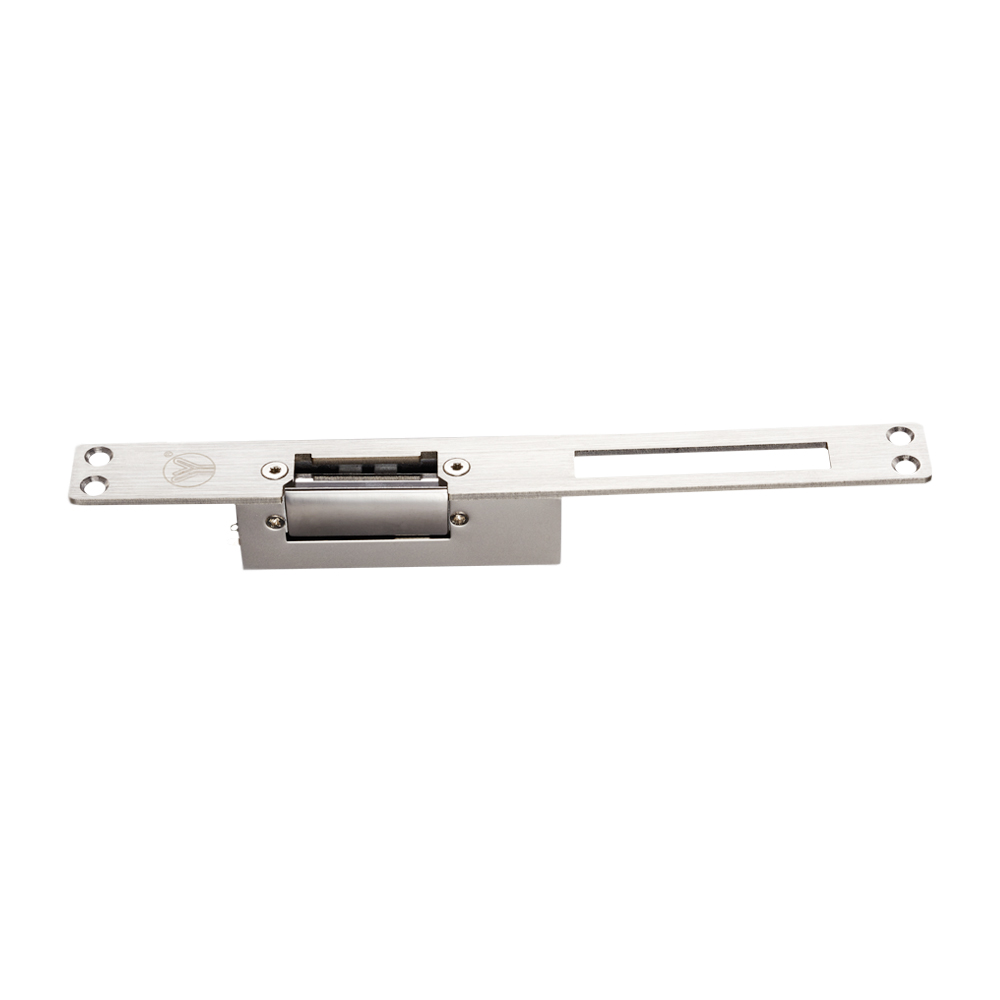

Long-type Electric Strike
Model:YS-132NO/NC(SZ)
YS-132NO/NC(SZ) is electric strike with long face plate, which designed for the application of European type electric mechanical locks. It suitable for wooden door, metal door, PVC door and so on. It can achieve dual functions of "electric control" for daily use and "manual" opening in emergency. The electric strike adopts a continuously working type durable solenoid valve, which can be selected as (NO, Fail-Secure) or (NC, Fail-Safe). The lock tongue use 304 stainless steel, and the internal connecting parts are use iron-based materials with hardening treatment, which is durable.
Keywords:
Share to:
Product Parameter Parameter Description

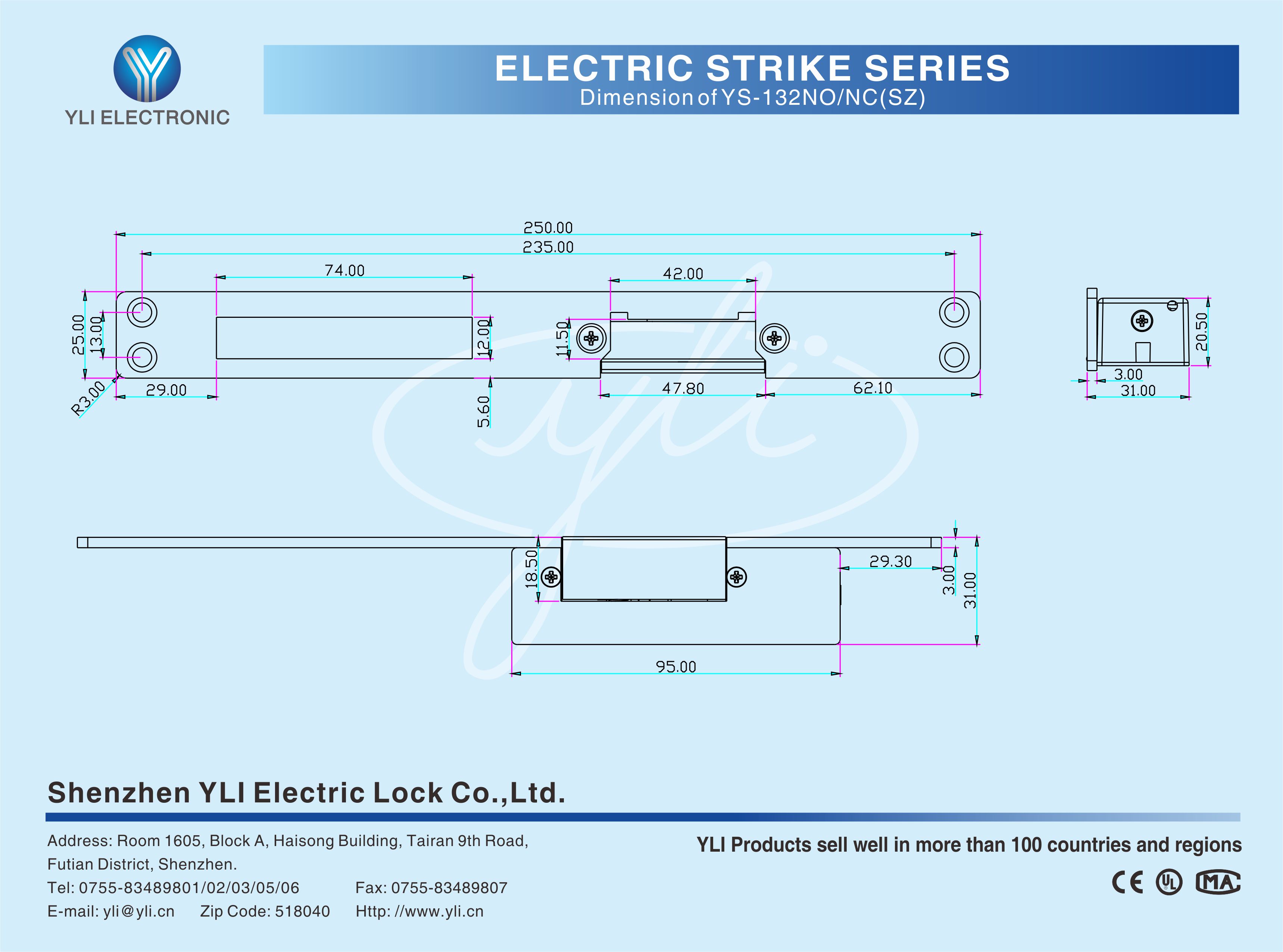

Lock Size  250Lx25Wx31H(mm)
Keeper  Stainless Steel
Static strength  350kg
Voltage  DC12V (Need Order DC24V)
Current  NO:12V/240mA(±10%); 24V/120mA(±10%)
 NC:12V/200mA(±10%); 24V/100mA(±10%)
Feature  Fail Secure(YS-132NO(SZ)); Fail Safe(YS-132NC(SZ))
Suitable For:  Wooden Door,Metal Door,PVC Door
Surface Temperature  Within +20℃
Suitable Temperature  -10~+55℃(14-131F)
Operating Humidity  0~95%(non-condensing)
Face plate Housing  Painted Steel
Protection performance  With Diode Surge Absorption Device
Optional Accessories YS-308
Weight  0.4kg
Certification CE-EMC
Holding 350kg.
Aluminum, Stainless Steel Bolt.
Testing to 100000 cycles.
High-Temperature Painted,Durable and Beautiful  Artical.
CE Certificate by European Union, MACertificate by China Public Security office.


Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 30
Packing Size(L*W*H)(cm) 54.5*20*30.5
Gross Weight(KG) 11.7
