Electric Strike for Push Bar
There are 4 Similar products,Comparison

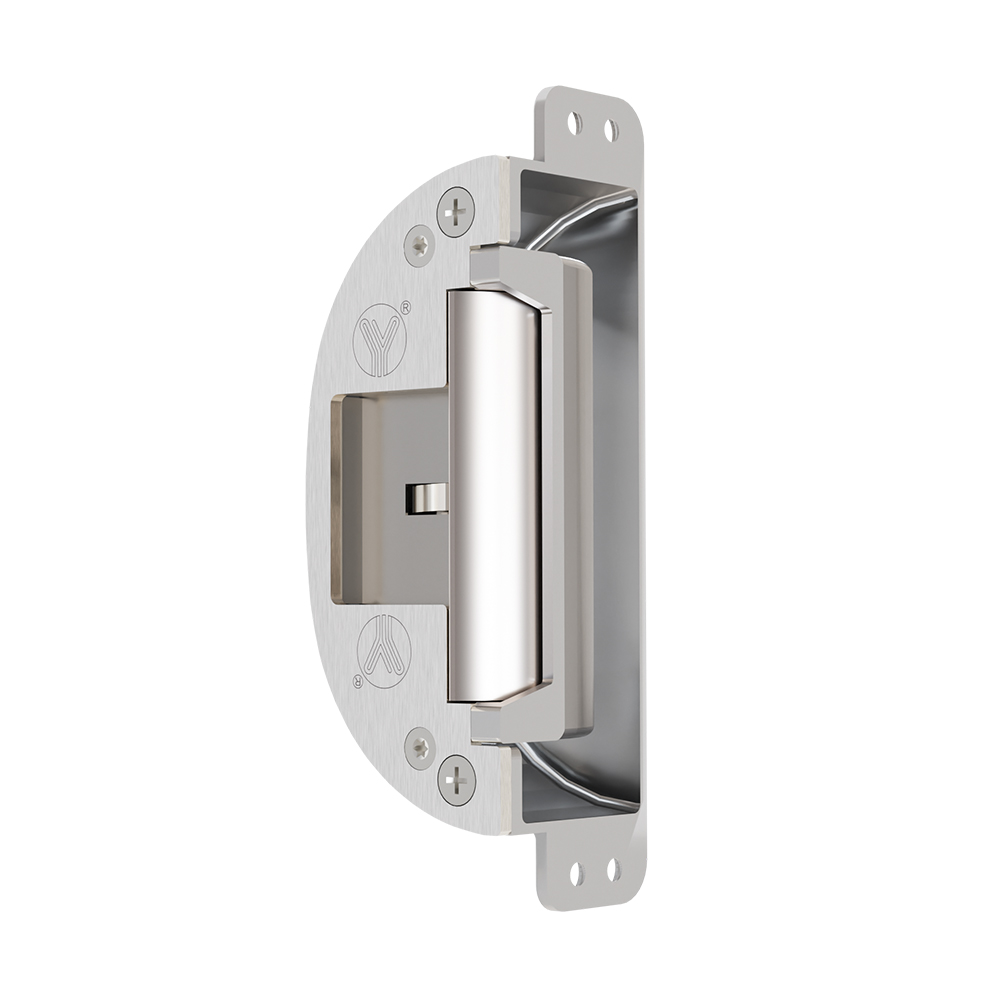

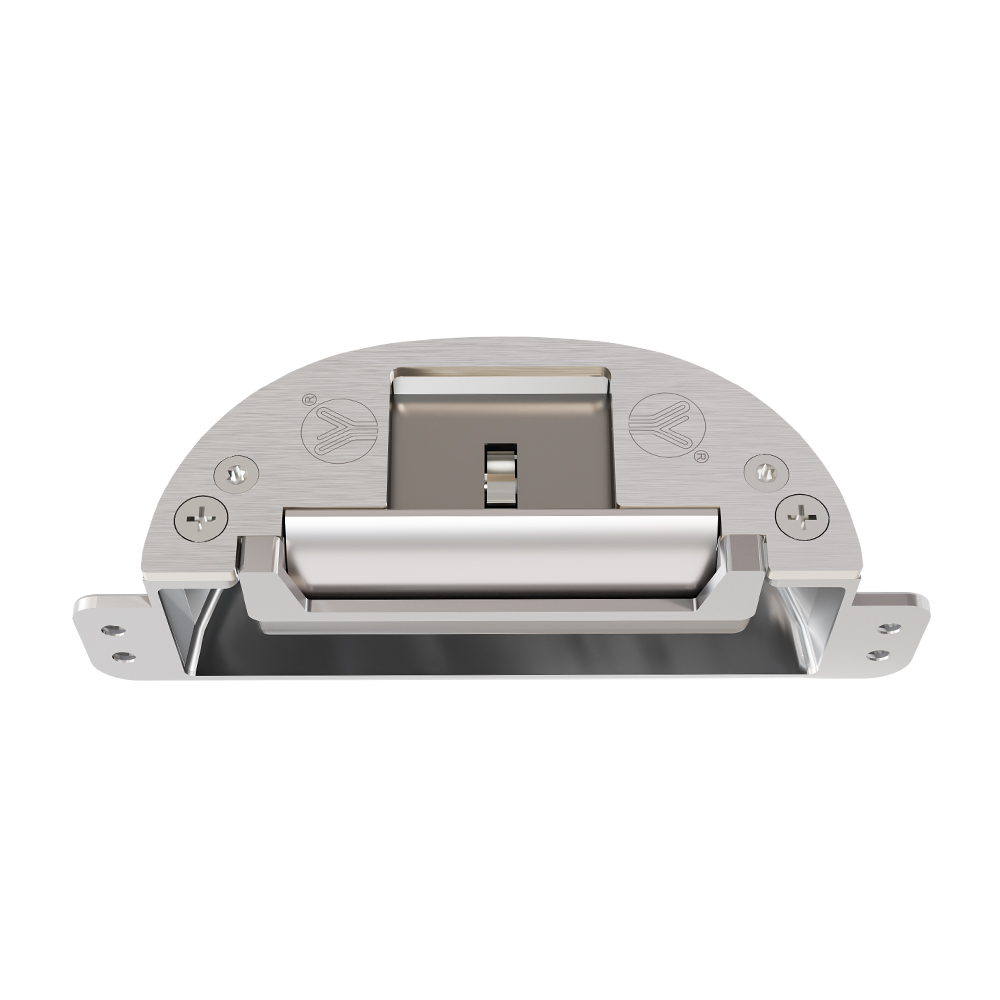

Double Door Electric Strike for Push Bar(Stainless steel)
Model:YS-622N-S(SS304)
YS-622N-S (SS304) This high-security electric strike (stainless steel) for double-door fire push-rod is designed for use with European and American standard fire push-rod locks. It offers both electronic control for normal operation and manual opening for emergencies. It features a set of door status signal outputs (NO, NC, and COM) to provide feedback to the access control system. This patented design integrates the internal moving parts, resulting in a robust structure and stable performance. It can be set to either (NO ‘Fail-Secure’ Power to Open) or (NC ‘Fail-Safe’Power to Lock) on-site. This model is constructed entirely of 304 stainless steel and has passed the EU 3-hour fire rating certification. When fire emergency exits require access control, this product transforms the one-way mechanical push-rod lock into a two-way access control system. It is the optimal solution for integrating emergency exits with access control systems in public facilities such as commercial hotels, office buildings, cinemas, airports, subways, factory buildings, and shopping malls.
Keywords:
Share to:
Product Parameter Parameter Description

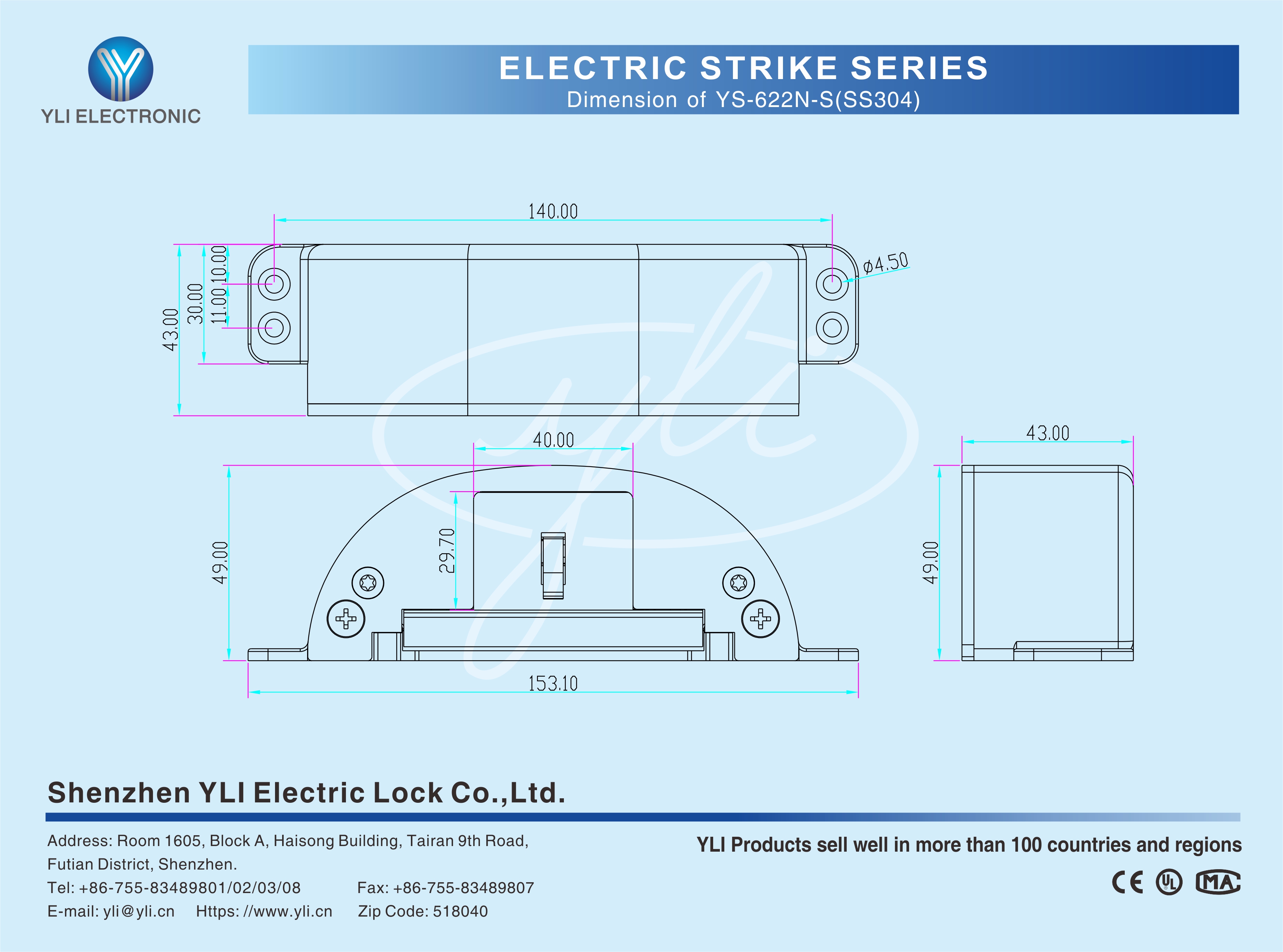

Lock Size  153Lx43Wx49H(mm)
Keeper  304 Stainless Steel
Static strength test approx. 800kg (third-party report)
Voltage  DC12C (24V need order)
Current 12V/320mA(±10%);24V/160mA(±10%)
Signal Output  Door sensor NO/NC/COM
special design  applies to all brands of fire push rod lock
Suitable For  European & American fire push bar
Surface Temperature  Within +20℃
Suitable Temperature  -10~+55℃(14-131F)
Operating Humidity  0~95%(non-condensing)
Protection performance  With Diode Surge Absorption Device
Face plate Housing  High temperature paint
Lock tongue  Surface by coating nickel
The door open 90 degrees
Weight  0.52kg
Certification MA CE-EMC CE-LVD FCC-VOC REACH WEEE
Enhanced stress structure design
Special design, NO/NC Adjustable
50000 solenoid valve special design
Power to open the door or door adjustable power supply
12/24VDC/VAC
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
